LED COB Strip 24V 320 LEDs
LED COB Strip 24V 320 LEDs
SKU: 4943
Power
None
Light color
White light
Neutral white
Warm white
Accessories
Middle Connector 8mm For COB Strip
One End Connector White Wire 8mm For COB Strip
Two End Connector With Wire 8mm For COB Strip
2Pin Fasten Connector Strip to Strip for 8mm COB
2Pin Fasten Connector Strip to Wire for 8mm COB
2Pin Fasten Dual Connector for 8mm COB
2Pin Fasten Connector Strip to Wire for 8mm COB/SMD
Send quotation
Your Request
The site registration allows each distributor to have information on the prices and the discounts they use.
Product Name:
*
Quantity:
*
SKU:
*
Your Name:
*
Your Email:
*
Phone:
*
Message:
*
Specifications
Downloads
Datasheet & QR Code
Video
Brand
Optonica
Product Code
ST320-A1
Energy Consumption
10 kWh/1000h
Input voltage
DC24V
Flux
900lm/m
IP
20
Dimmable
Yes
Correlated Color Temperature
3000K
Light Color
Warm white
EAN Code
3800156649439
Energy Efficiency Label
F
Beam angle
180°
On/Off Cycles
25 000x
Instant On
0.1s
Operating Frequency
50-60 Hz
Temperature
-20°C / +40°C
Ra ≥
90
Color Code
930
LED Type
COB
LEDs/m
320
Power per meter
10W/m
Roll
5 m
Lumen maintenance at end of service life
70%

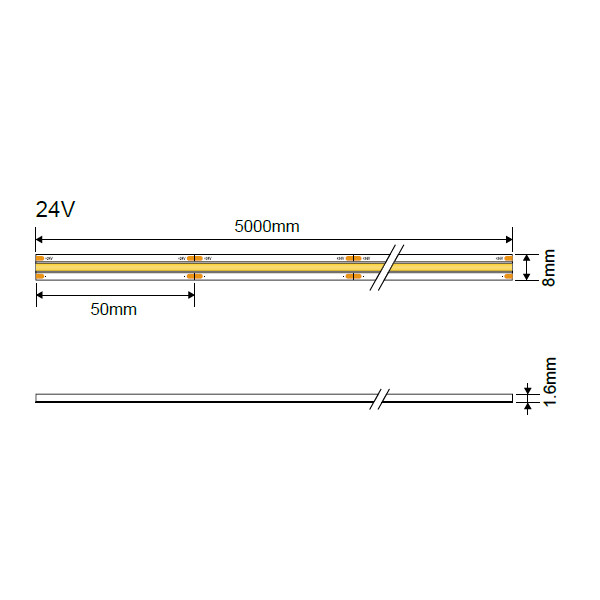

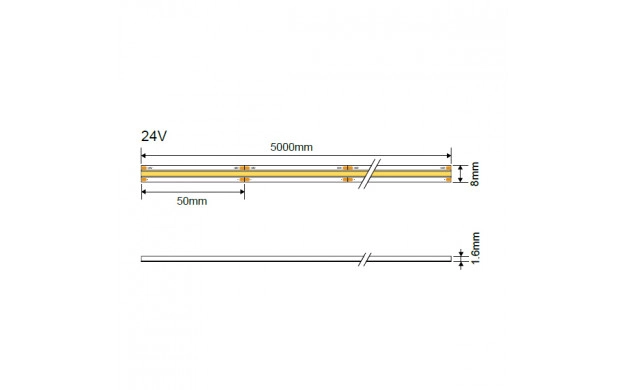

Size of product
8mm x 2 mm
Material
Flex PCB
Width
8 mm
Accessories
6622, 6623, 6624
Cutting distance
50mm
Gross weight
0,085 kg
Net weight
0,010 kg
Warranty
2 Years
UNIVERSAL MULTILINGUAL USER MANUAL
Certificates
Strips-LVD.pdf
EU Label
4941-b-2.pdf
4942-b.pdf
4943-b.pdf
Download datasheet
