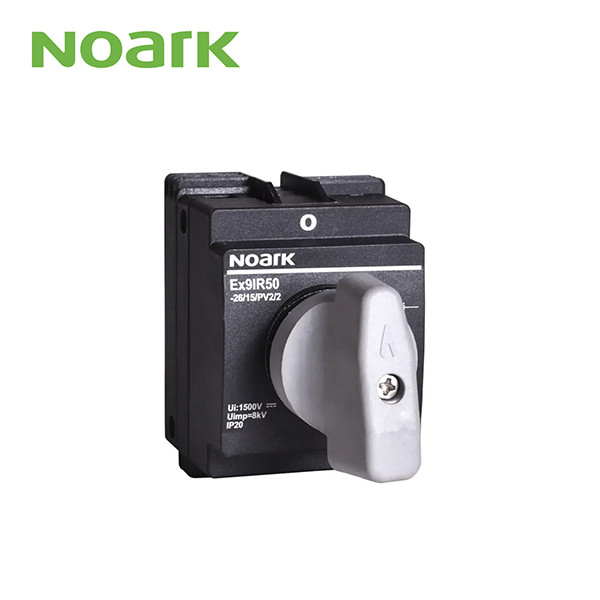

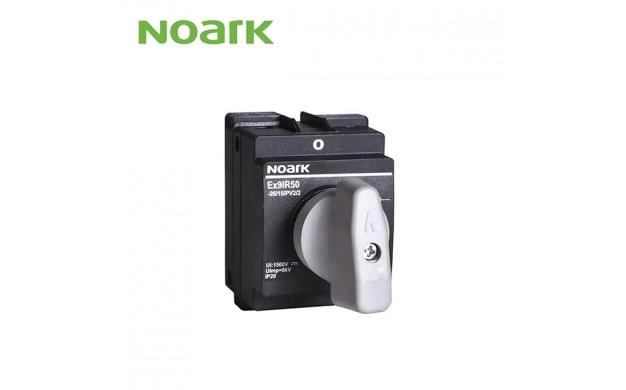

DC Rotary switch disconnector Ex9IR50-26/15/PV2/2 | Optonica LED

DC Rotary switch disconnector Ex9IR50-26/15/PV2/2 SKU: 113508

Power
Light color
Send quotation
  • Brand
    NOARK
  • IP
    20
  • EAN Code
    8592765135087
  • Color
    Grey
  • Number of poles (total)
    2
  • Version as main switch
    Yes
  • Version as maintenance-/service switch
    Yes
  • Version as safety switch
    No
  • Version as emergency stop installation
    No
  • Version as reversing switch
    No
  • Number of switches
    1
  • Rated operating voltage [V]
    1500
  • Rated permanent current Iu [A]
    26
  • Rated short-time withstand current lcw
    0.7
  • Device construction
    Built-in device fixed built-in technique
  • Suitable for ground mounting
    No
  • Suitable for front mounting 4-hole
    No
  • Suitable for front mounting center
    Yes
  • Suitable for distribution board installation
    Yes
  • Suitable for intermediate mounting
    Yes
  • Type of control element
    Door coupling rotary drive
  • Interlockable
    No
  • Type of electrical connection of main circuit
    Cable clamp
  • Warranty
    5 Years
