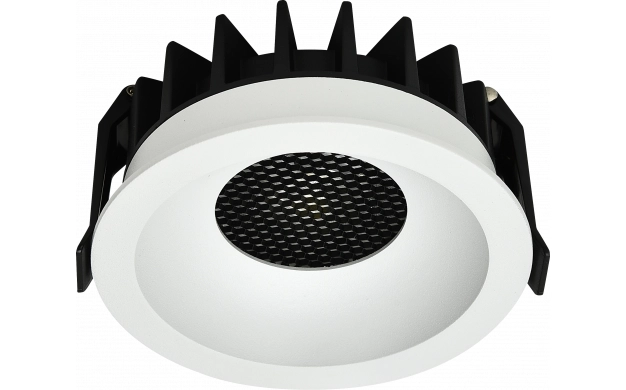

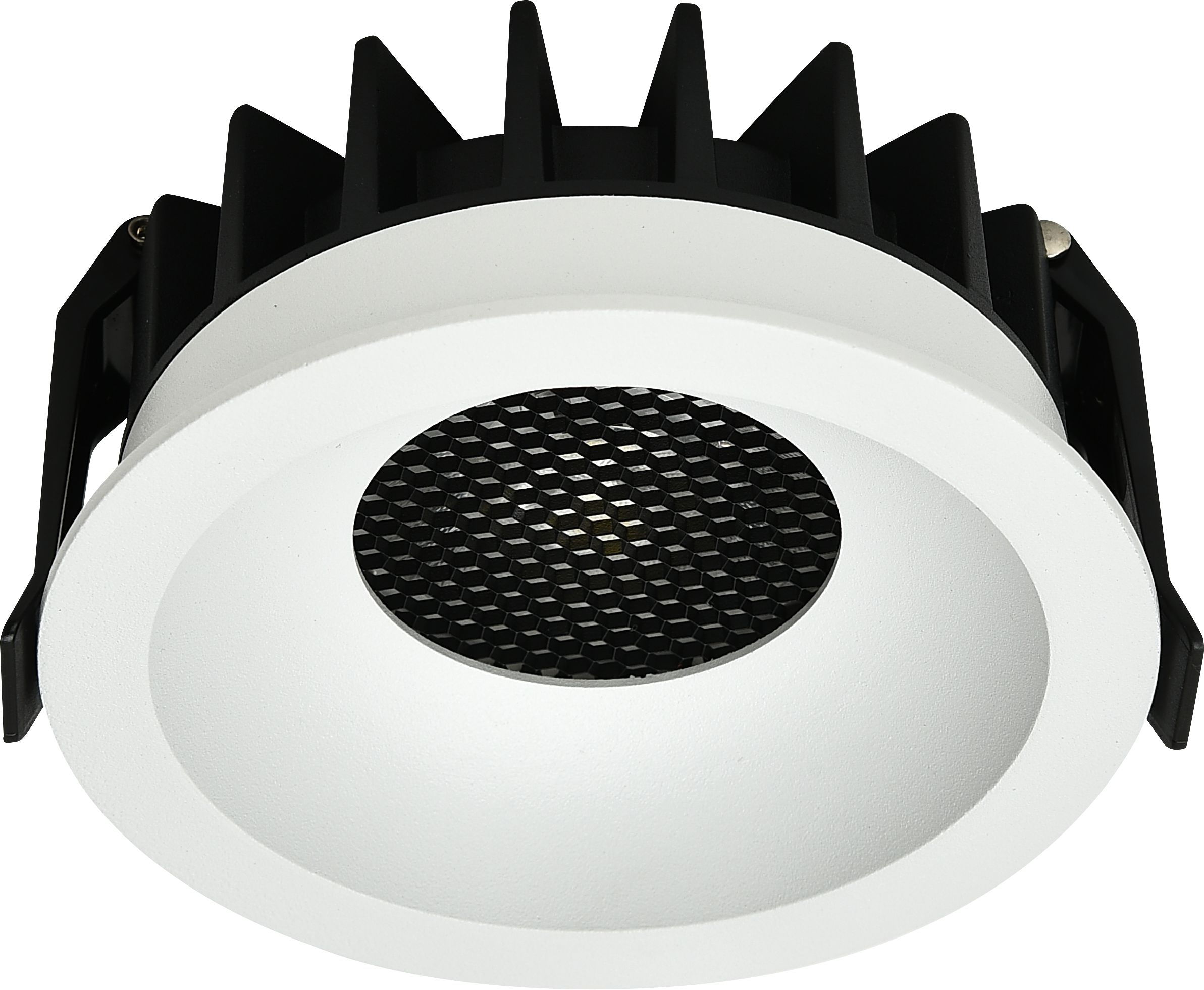

LED COB Downlight 10W CCT ROUND WHITE - BRIDGELUX
LED COB Downlight 10W CCT ROUND WHITE - BRIDGELUX
SKU: 12032
Power
10W
15W
20W
Light color
CCT
Send quotation
Your Request
The site registration allows each distributor to have information on the prices and the discounts they use.
Product Name:
*
Quantity:
*
SKU:
*
Your Name:
*
Your Email:
*
Message:
*
Specifications
Downloads
Datasheet & QR Code
Brand
Optonica
Product Code
CB10-A5
Power
10W
Energy Consumption
10 kWh/1000h
Input voltage
AC85-265V
Flux
1000 lm
FLUX per watt
100 lm/W
IP
20
Dimmable
No
Correlated Color Temperature
3000K/4000K/6000K
Light Color
CCT
EAN Code
3801057120324
Energy Efficiency Label
E
Beam angle
24º
Hole Size
ф75 mm
On/Off Cycles
25 000x
Instant On
0.1s
Material
Aluminium
Operating Frequency
50-60 Hz
Temperature
-20°C / +40°C
Ra ≥
90
Life span
25 000 Hours
Lumen maintenance at end of service life
70%

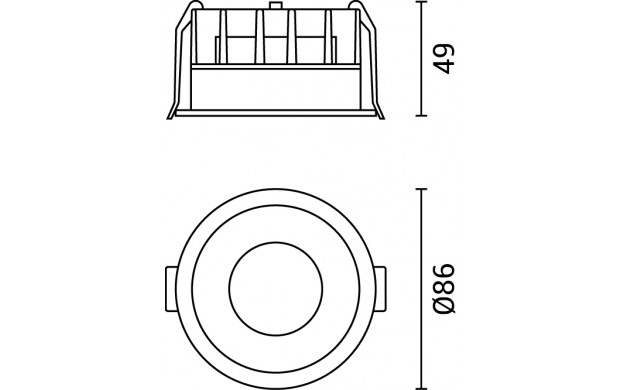

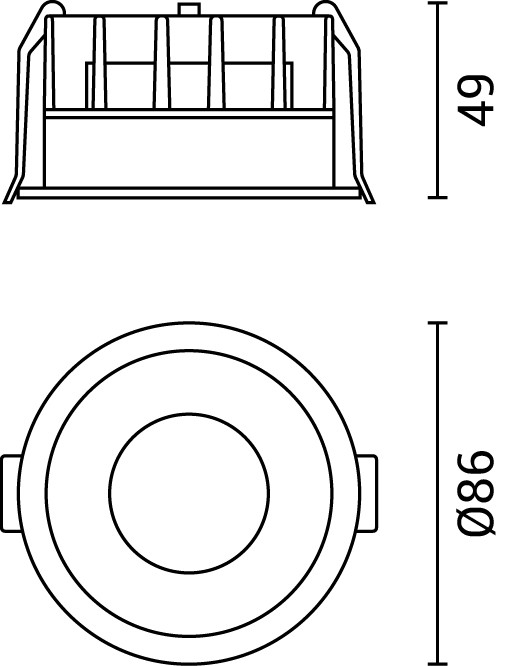

Size of product
86x43 mm
Size of package
115x110x55 mm
Items per pack
1
Items per box
50
Color Of The Shell
White
Warranty
2 Years
EU Label
12032-b_1751958567.pdf
User Manual
12031-12036 UserManual_1751958047.pdf
Download datasheet
Download QR Code
