Mini panel redondo delgado con retroiluminación LED
LED Backlit Slim Mini Round Panel
SKU: 2951
Potencia
6W
12W
18W
24W
Color de luz
White light
Neutral white
Warm white
Enviar cotización
Your Request
The site registration allows each distributor to have information on the prices and the discounts they use.
Product Name:
*
Quantity:
*
SKU:
*
Your Name:
*
Your Email:
*
Message:
*
Especificaciones
Descargas
Datasheet & QR Code
Brand
Optonica
Product Code
DL6-B1
Power
6W
Energy Consumption
6 kWh/1000h
Input voltage
AC85-265V
Flux
360 lm
FLUX per watt
60lm/W
IP
20
Dimmable
No
Correlated Color Temperature
6000K
Light Color
White light
EAN Code
3800156629516
Energy Efficiency Label
G
Beam angle
120º
Hole Size
Ф105mm
On/Off Cycles
25 000x
Instant On
0.1s
Operating Frequency
50-60 Hz
Temperature
-20°C / +40°C
Ra ≥
80
Life span
25 000 Hours
Body Color
White
Lumen maintenance at end of service life
70%

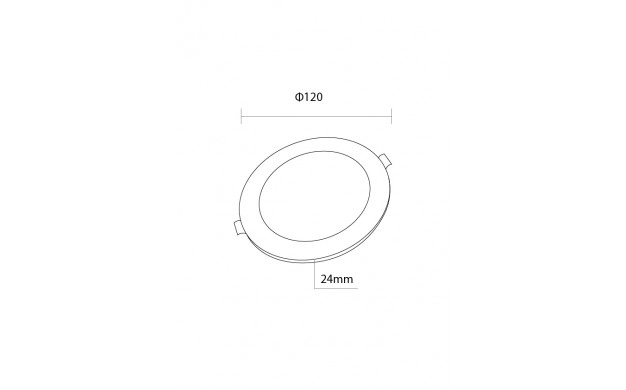

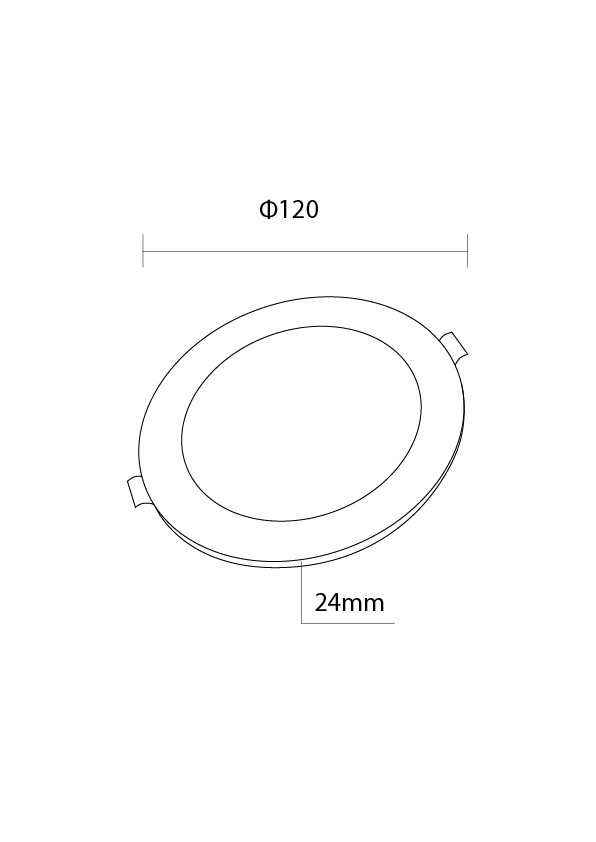

Size of product
Ф120x24mm
Size of package
14.5x2.8x12.5cm
Size of Box
30x30x40cm
Items per pack
1
Items per box
60
Material
Aluminium
Gross weight
0,087 kg
Net weight
0,060 kg
Warranty
2 Years
User Manual
NEW-SlimCeiling-UserManual.pdf
EU Label
2951-b.pdf
2952-b.pdf
2953-b.pdf
2954-b.pdf
2955-b.pdf
2956-b.pdf
2957-b.pdf
2958-b.pdf
2959-b.pdf
2960-b.pdf
2961-b.pdf
2962-b.pdf
Certificates
MiniPanels-EMC_1724324999.pdf
MiniPanels-LVD_1724325002.pdf
Descargar hoja de datos
Download QR Code
